Outdoor LED billboards, built end to end.
Screen, steel structure, power and permits — one team, one contract. We've delivered highway billboards, shopping-mall façades and government displays across Malaysia since 2018.
- Since 2018KL-based, nationwide
- Record holderM'sia Book of Records façade
- 5-yearpanel warranty
- TurnkeyScreen · Structure · TNB · Permits
One contract. No finger-pointing.
Most billboard projects fail in the gaps between suppliers — the screen vendor blames the structural contractor, who blames the electrical contractor. We take the whole scope, so there are no gaps.
High-brightness outdoor panels, IP65, sourced and QC'd direct from factory.
Engineered mounting structure, gantry or façade frame, wind-load designed.
Supply application, metering, sub-mains cabling and distribution boards.
DBKL / local council and highway authority submissions handled for you.
Built for Malaysian sun and rain.
| Pixel pitch | P4 / P6 / P8 / P10 — chosen by viewing distance and budget |
|---|---|
| Brightness | Up to 10,000 cd/m² — readable in direct sunlight |
| Ingress protection | IP65 front and rear — rain and dust sealed |
| Refresh rate | ≥3,840 Hz — flicker-free on camera |
| Colour depth | ≥12-bit per channel, constant-current drive |
| Maintenance | Front or rear access, module-level replacement |
| Control | NovaStar sending / receiving, sync or async, remote scheduling |
| Warranty | 5 years on panels — manufacturer-backed |

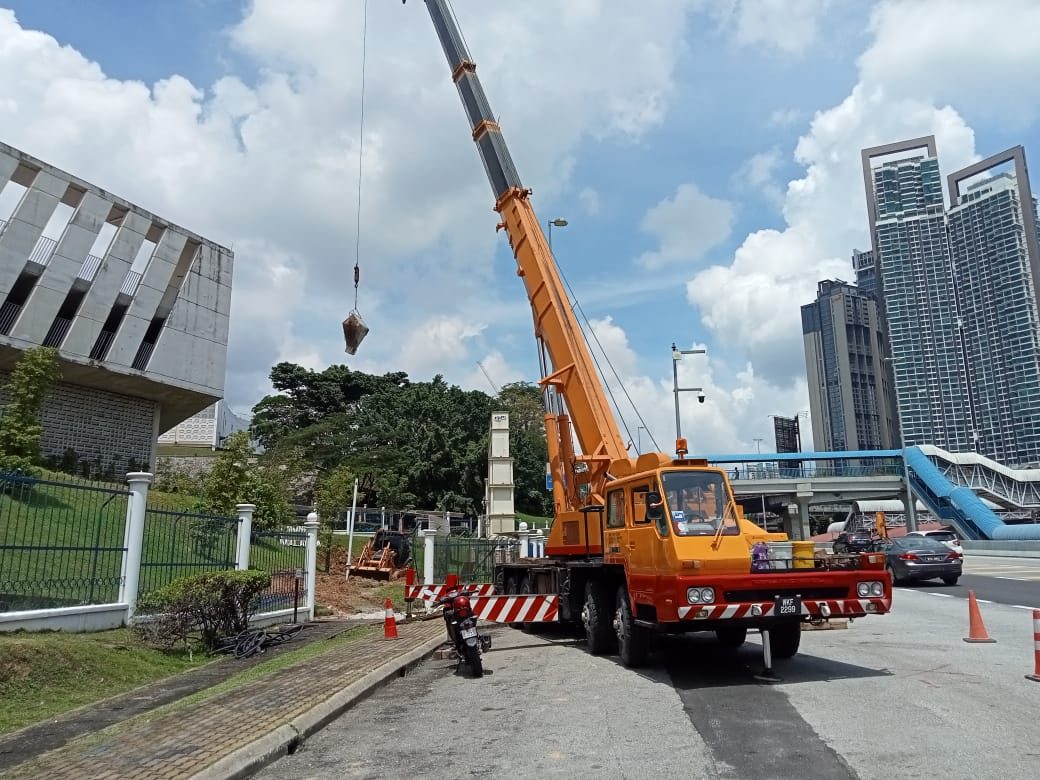

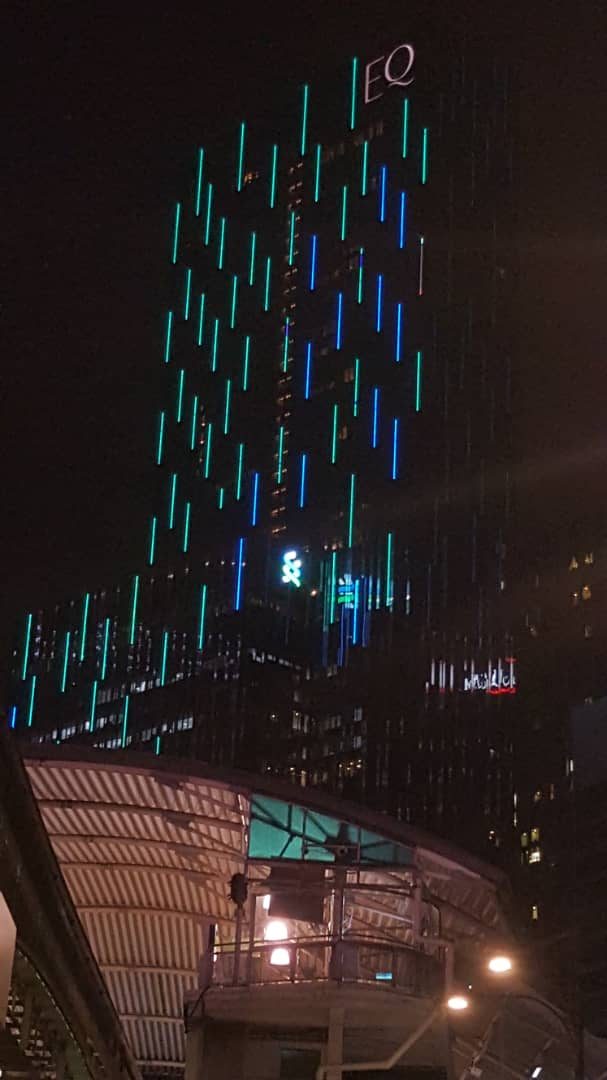

Screens we've delivered.
Before you ask us.
What does an outdoor LED billboard cost?
It depends on size, pixel pitch and how much structure and power work the site needs. Send us the location and rough dimensions on WhatsApp and we'll give you an indicative figure — usually the same day — then a firm quote after a site survey.
Do you handle the TNB power application?
Yes. Outdoor billboards draw serious power, and getting the supply sized and approved is often the longest lead item on the job. We handle the application, metering and cabling as part of the scope.
What about DBKL or council permits?
We prepare and submit the approvals — DBKL or the relevant local council, plus highway authority submissions where the site sits on or beside a federal road.
How long does installation take?
A typical mid-size billboard runs 8–14 weeks from order to go-live, driven mostly by panel manufacturing lead time and the power application. Structure and install is usually the fastest part.
What pixel pitch do I need?
Rule of thumb: minimum viewing distance in metres roughly equals the pitch in millimetres. A highway billboard viewed from 30m+ works fine at P10; a screen at a mall entrance viewed from 5m wants P4 or finer. We'll advise on your site.
Do you service the screen after installation?
Yes — maintenance contracts, module replacement and spares. We also service screens installed by other suppliers.
Planning an outdoor LED billboard?
Send us the site location and rough size — we'll come back with options and a quote.
